Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit. Screw adjustable ram and adjustable work area with removable tray. Sliding hydraulic ram assembly giving 280mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Winch assisted press table adjustment. Storage for press pins included in frame. Supplied with press pins, flat pressing plate/V-blocks. This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit.
• Screw adjustable ram and adjustable work area with removable tray.
• Sliding hydraulic ram assembly giving 280mm of lateral travel for off-centre pressing applications.
• Frame head fitted with ram pressure gauge.
• Winch assisted press table adjustment.
• Storage for press pins included in frame.
• Supplied with press pins, flat pressing plate/V-blocks.
• 5 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

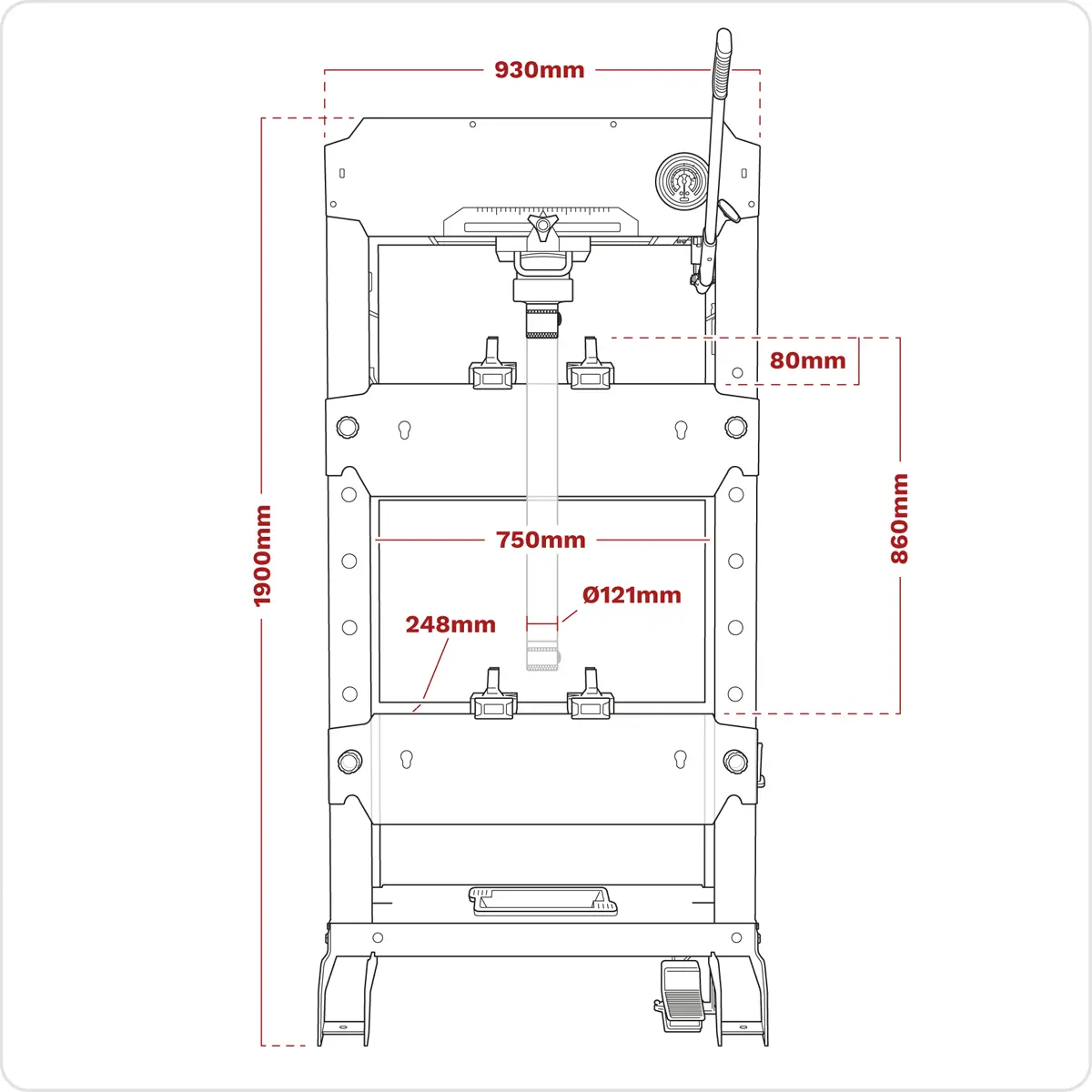

Specifications
| Model No | PPF501S |
| Air Consumption: | 4.5cfm |
| Bench or Floor Mounting: | Floor |
| Brand: | Viking |
| Capacity: | 50 Tonne |
| Gauge Included: | Yes |
| Lateral Ram Travel: | 280mm |
| Maximum Height – Ram to Table: | 780mm |
| Minimum Height – Ram to Table: | 80mm |
| Nett Weight: | 249.2kg |
| Operating Table Width: | 750mm |
| Overall Height: | 1900mm |
| Ram Diameter: | Ø123.6mm |
| Ram Stroke: | 220mm |
| Screw Extension: | 75mm |
| Table Aperture: | 224mm |
| Type: | Floor |
| Working Table Depth: | 248mm |
| Working Table Width: | 930mm |
