Description
Bench mounting mini drilling/milling machine with the flexibility to handle most materials. Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and metric graduated compound scales. The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical. Supplied with 13mm chuck accessory kit for adjusting and setting. An optional stand is available, order Model No. SM3002ST.
• Bench mounting mini drilling/milling machine with the flexibility to handle most materials.
• Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and metric graduated compound scales.

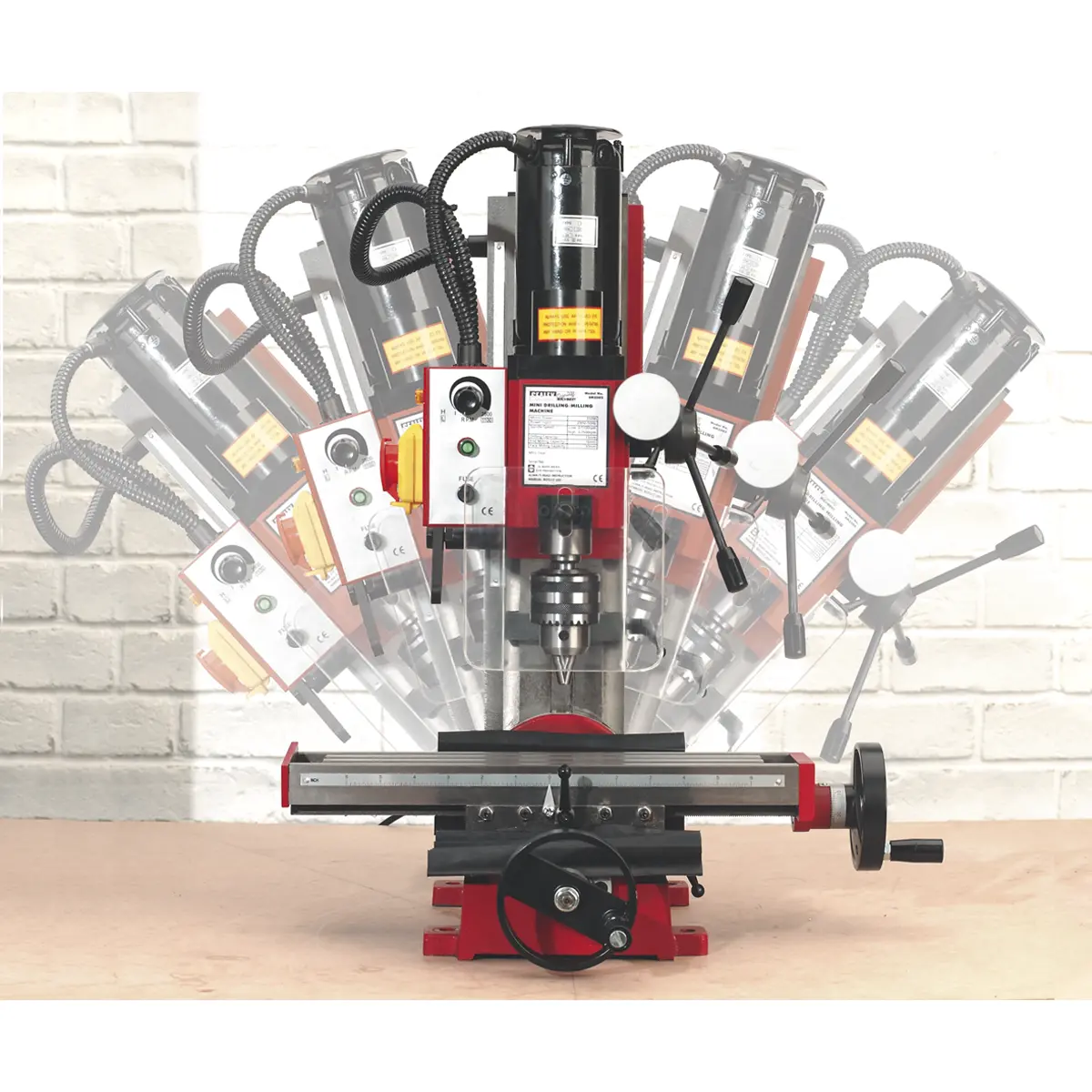

• The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical.
• Supplied with 13mm chuck accessory kit for adjusting and setting.
• An optional stand is available, order Model No. SM3002ST.
• A comprehensive range of accessories also available.
Specifications
| Model No | SM2502 |
| Brand: | Sealey |
| Cross Axis: | 100mm |
| Drilling Capacity (Chuck Size): | 13mm |
| End Mill Capacity: | 16mm |
| Face Mill Capacity: | 30mm |
| Headstock Travel: | 180mm |
| Longitudinal Axis: | 220mm |
| Motor Power: | 350W |
| Nett Weight: | 68kg |
| Spindle Nose Taper: | MT3 |
| Spindle Speed – High Range: | 0-2500rpm |
| Spindle Speed – Low Range: | 0-1100rpm |
| Spindle Tilt Angle: | ±45° |
| Supply: | 230V |
| T-Slot: | 12mm |
Documents
| Instructions | View/Download |
| Parts Diagrams | View/Download |
