Description
Heavy-duty aluminium alloy valve assembly with integral filter and water trap. Airflow control knob can be locked in position to prevent accidental adjustment of pressure. Features large gauge marked in psi, bar and kg/cm². Individual compressed air outlets are fitted with shut-off valve. Suitable for direct mounting onto compressors or can be plumbed into air line runs.
• Heavy-duty aluminium alloy valve assembly with integral filter and water trap.
• Airflow control knob can be locked in position to prevent accidental adjustment of pressure.

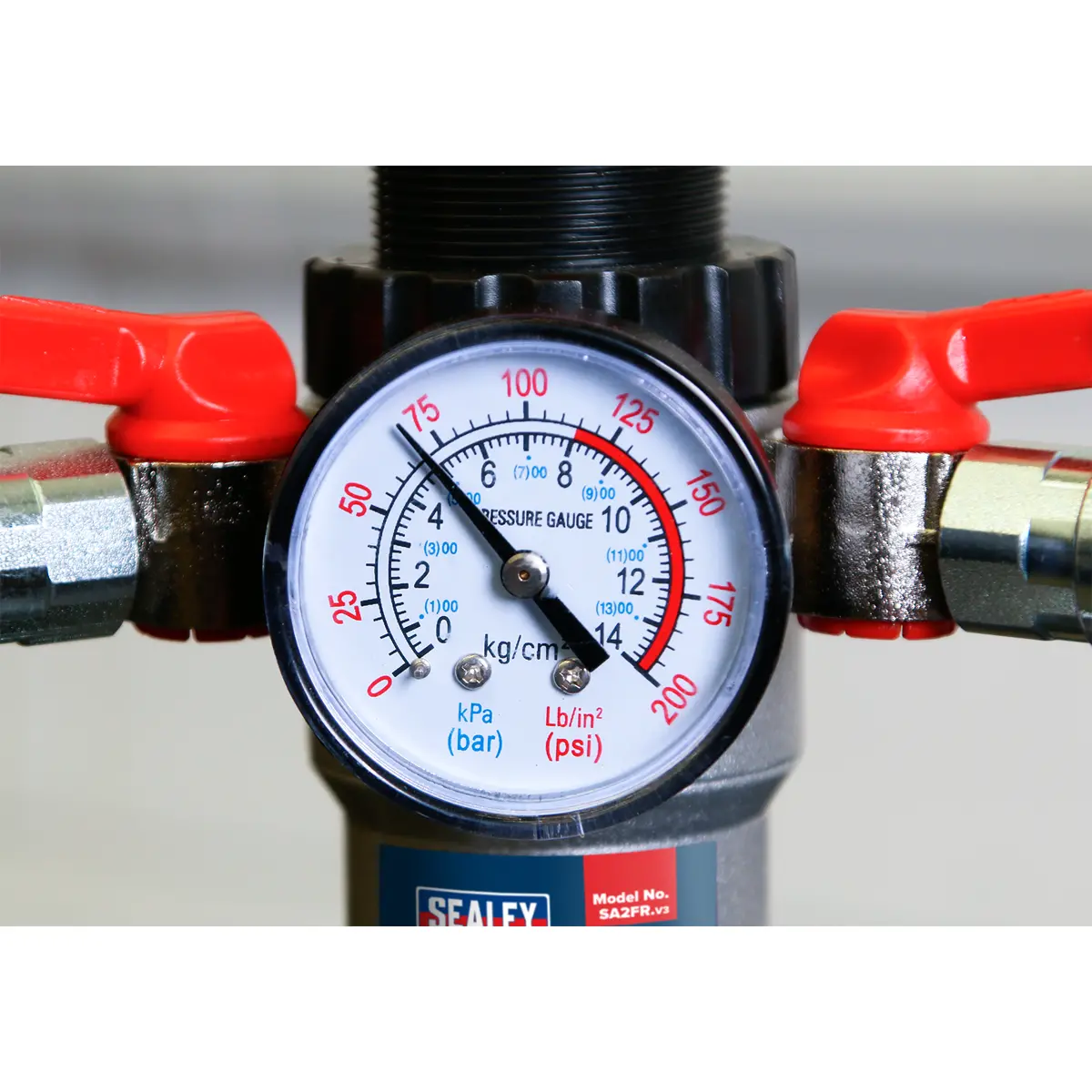

• Features large gauge marked in psi, bar and kg/cm².
• Individual compressed air outlets are fitted with shut-off valve.
• Suitable for direct mounting onto compressors or can be plumbed into air line runs.
• Max. Air Input: 174psi, Max. Air Output: 174psi, Safe Working Pressure: 0-115psi.
• Max. Airflow: 76cfm, Inlet Thread: 1/2″BSP, Outlet Thread: 1/4″BSP.
• Outlet Quantity: 2.
Specifications
| Model No | SA2FR |
| Brand: | Sealey |
| Inlet Size: | 1/2″BSP |
| Maximum Air Input: | 174psi |
| Maximum Air Output: | 174psi |
| Maximum Airflow: | 76cfm* |
| Nett Weight: | 0.78kg |
| Outlet Quantity: | 2 |
| Outlet Size: | 1/4″BSP |
| Safe Working Pressure: | <115psi |
Documents
| Instructions | View/Download |
| Parts Diagrams | View/Download |
