Description
PROMOTION SALE!

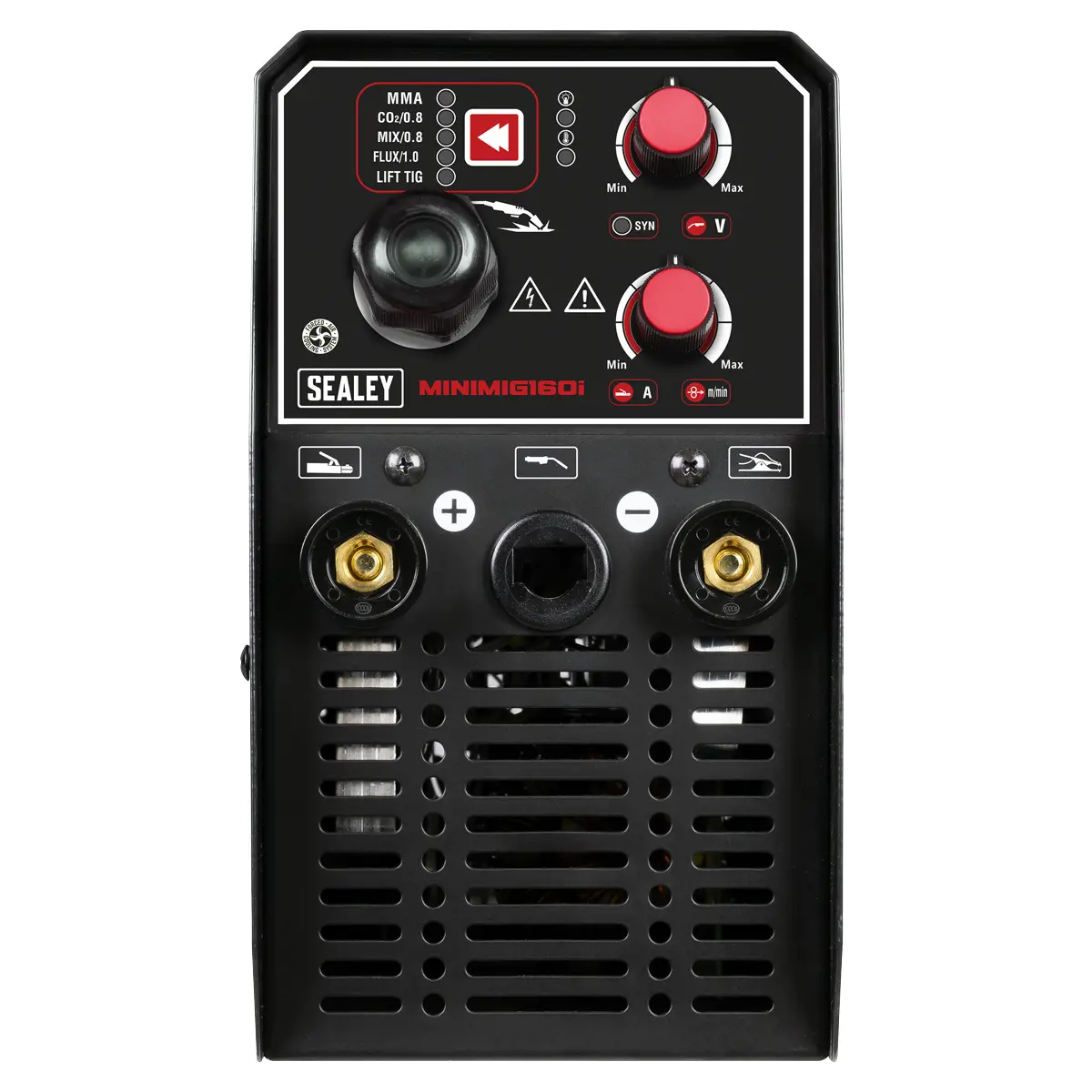

IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 160A. Multi-functional welder combining MIG/TIG and MMA applications into a single compact unit, ideal for workshops, garages, bodyshops and mobile technicians. Ultra-compact unit, weighing only 6.9kg, features a carry strap for portability, allowing easy transport to job sites. Featuring hot start, anti-stick, forced air cooling and thermal cut out protection. Unit can MIG weld using 1kg Ø0.8/0.9/1mm solid wire and Ø0.8/0.9mm flux cored MIG wire, MMA/ARC weld Ø1.6 up to Ø4mm electrode. Supplied with fixed non-live MIG torch, 1.4m earth cable/clamp, 1.6m electrode holder.
• IGBT INVERTER TECHNOLOGY – IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 160A.
• 3-IN-1 FUNCTION – Multi-functional welder combining MIG/TIG and MMA applications into a single compact unit, ideal for workshops, garages, bodyshops and mobile technicians.
• HIGHLY PORTABLE – Ultra-compact unit, weighing only 6.9kg, features a carry strap for portability, allowing easy transport to job sites.
• FEATURING – Hot start, anti-stick, forced air cooling and thermal cut out protection.
• WELDING CAPABILITY – Unit can MIG weld using 1kg Ø0.8/0.9/1mm solid wire and Ø0.8/0.9mm flux cored MIG wire, MMA/ARC weld Ø1.6 up to Ø4mm electrode.
• SUPPLIED WITH – Supplied with fixed non-live MIG torch, 1.4m earth cable/clamp, 1.6m electrode holder.
• DUTY CYCLE – MIG – 60% @ 160A, TIG – 60% @ 160A, MMA/ARC – 60% @ 160A.
Specifications
| Model No | MINIMIG160i |
| Brand: | Sealey |
| Nett Weight: | 6.9kg |
| Welding Current: | 10-160A |
| Duty Cycle MIG: | 60% @ 160A, 100% @ 124A |
| Duty Cycle MMA/ARC: | 60% @ 160A, 100% @ 124A |
| Duty Cycle TIG: | 60% @ 160A, 100% @ 124A |
| Wire Capacity: | 1kg Ø0.8/0.9/1mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire |
| Electrode Capacity: | 1.6-4mm |
| Absorbed Power: | 4.4kW |
| Supply: | 230V 16A* |
| Insulation Class: | H |
| IP Rating: | IP21S |
| Note * | To achieve maximum power a 16A supply may be required. |
Documents
| Parts Diagrams | View/Download |
| Instructions | View/Download |
