Description

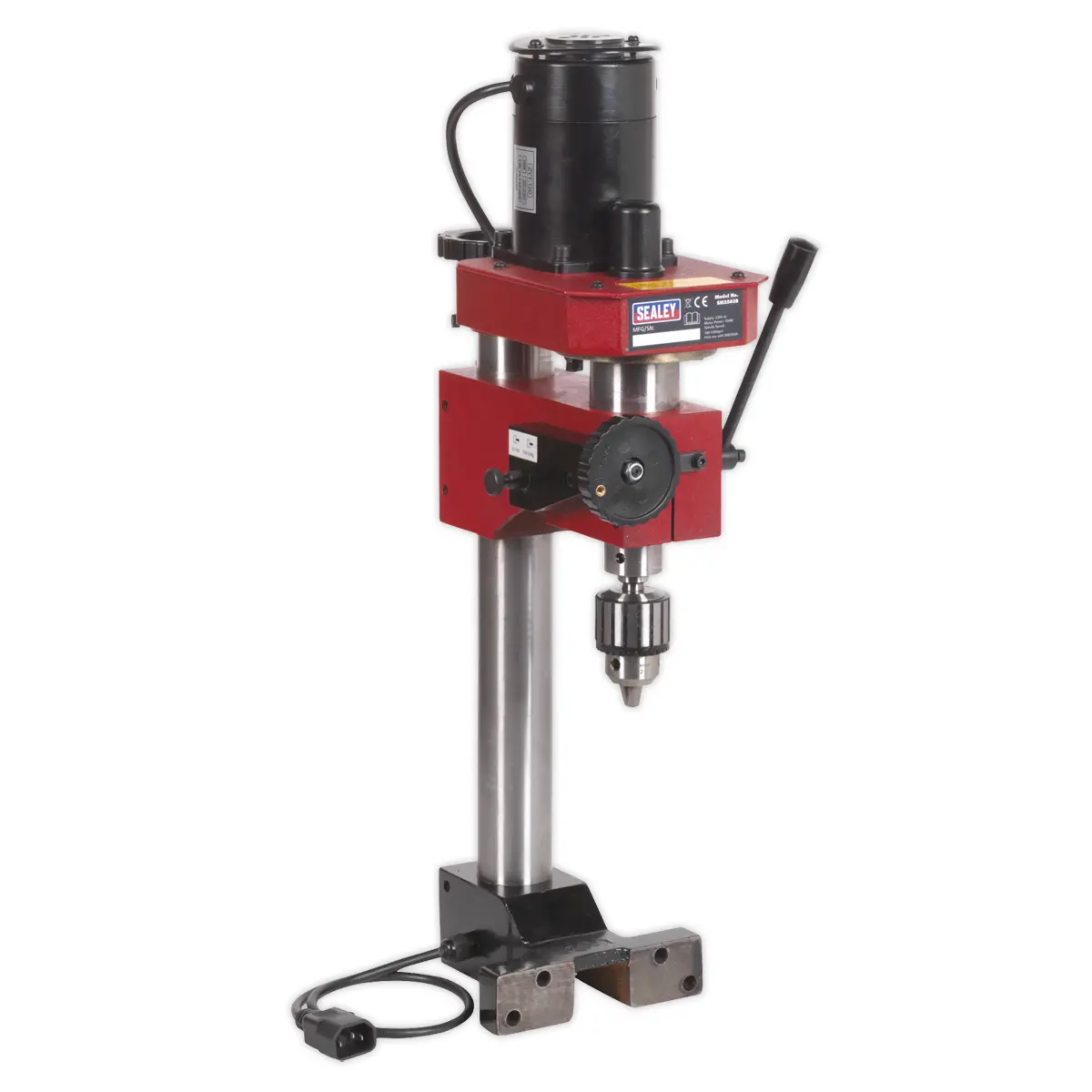

Transforms Model No. SM2503A Metalworking Mini Lathe into a lathe/mill drill combination. Easily retrofitted, this drill head offers the flexibility to handle most materials. This space efficient, versatile lathe mill/drill machine features a 150W motor.
• Transforms Model No. SM2503A Metalworking Mini Lathe into a Lathe/Mill Drill combination.
• Easily retrofitted.
• Offers the flexibility to handle most materials.
• Features 150W motor.
• Drilling/Milling Spindle Speed/Travel: 100-1500rpm/30mm.
• Maximum Drilling/Milling Capacity: 10mm.
• Creates space efficient versatile lathe mill/drill machine.
Specifications
| Model No | SM2503B |
| Brand: | Sealey |
| Distance from Spindle Centre to Column: | 100mm |
| Distance from Spindle to Table: | 180mm |
| Drilling/Milling Spindle Speed: | 100-1300rpm |
| Drilling/Milling Spindle Travel: | 30mm |
| Maximum Drilling/Milling Capacity: | 10mm |
| Motor Power: | 150W – 230V |
| Nett Weight: | 14kg |
| Spindle Taper: | MT2 |
| T-Slot: | 8mm |
Documents
| Parts Diagrams | View/Download |
| Instructions | View/Download |
