Description

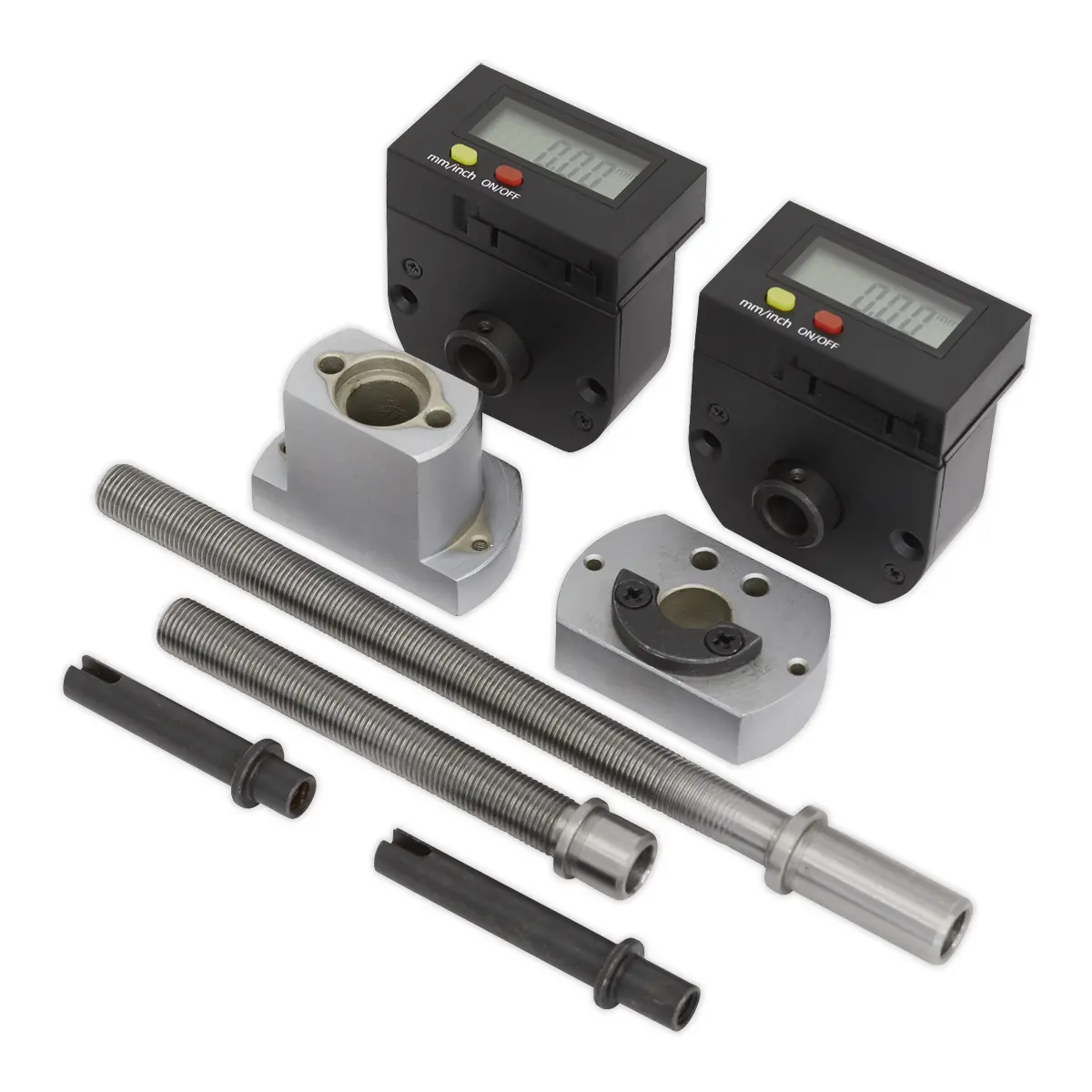

Digital display for the cross slide and the compound tool rest to replace the standard graduated scales. These LCD units improve accuracy, save reading time and minimize errors. Imperial or Metric readings may be selected and the reading can be zeroed at any point. Three decimal place (Metric) and four decimal place (Imperial) displays with an accuracies of ± 0.025mm/0.001″. Requires CR2032 – 3V lithium-ion batteries (not included).
• Digital display for the cross slide and the compound tool rest to replace the standard graduated scales.
• These LCD units improve accuracy, save reading time and minimize errors.
• Imperial or Metric readings may be selected and the reading can be zeroed at any point.
• Three decimal place (Metric) and four decimal place (Imperial) displays with an accuracies of ± 0.025mm/0.001″.
• Requires CR2032 – 3V lithium-ion batteries (not included).
Specifications
| Model No | SM3002DFD |
| Brand: | Sealey |
| Nett Weight: | 0.00kg |
| Description: | Digital Feed Display |
| Application(s): | |
| Lathe/Mill/Drill SM2503: | – |
| Lathe SM3002: | Yes |
| Specification: | |
| Metric Display: | 3 Decimal Places |
| Imperial Display: | 4 Decimal Places |
| Accuracy: | ± 0.025mm/0.001″ |
| Battery: | CR2032 – 3V Lithium-ion (not included) |
Documents
| Instructions | View/Download |
| Parts Diagrams | View/Download |
