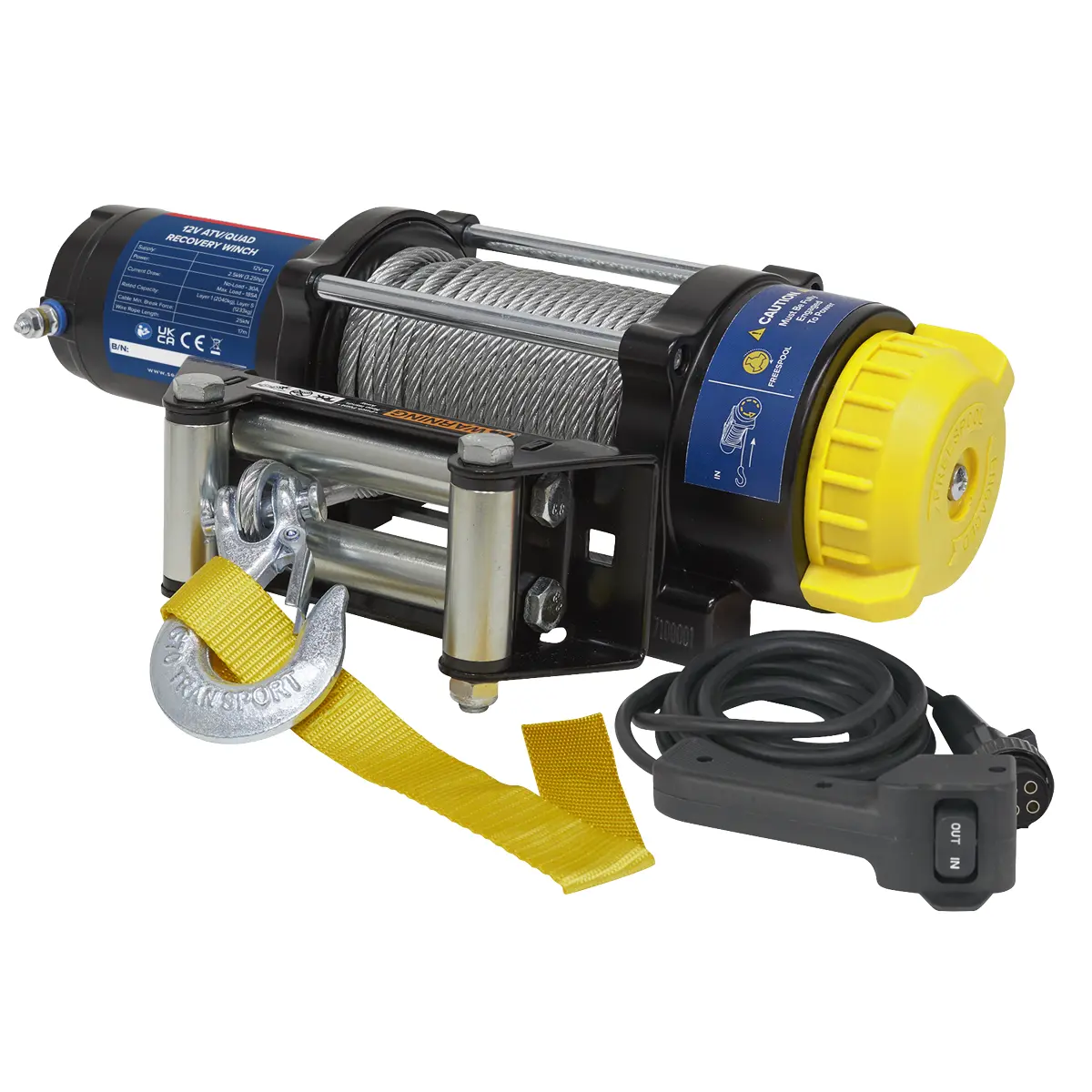

Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability. High power 2.5kW (3.25hp) 12V DC permanent magnet type motor gives first class pulling power. All-metal chassis for long-life and low maintenance. Motor can easily be rotated 90° to meet various wiring and mounting requirements. Patented unique automatic spring brake, reliable in full load operation. High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum.
• Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability.
• High power 2.5kW (3.25hp) 12V DC permanent magnet type motor gives first class pulling power.
• All-metal chassis for long-life and low maintenance.
• Motor can easily be rotated 90° to meet various wiring and mounting requirements.
• Patented unique automatic spring brake, reliable in full load operation.
• High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum.
• Cable Length: 17m.
• Line Pull*: 2040kg(4500lb).
• IP67 rated.
• Gear Ratio: 180:1.
*Performance quoted at first layer of cable on drum.
Specifications
| Model No | ATV2040 |
| Brand: | Sealey |

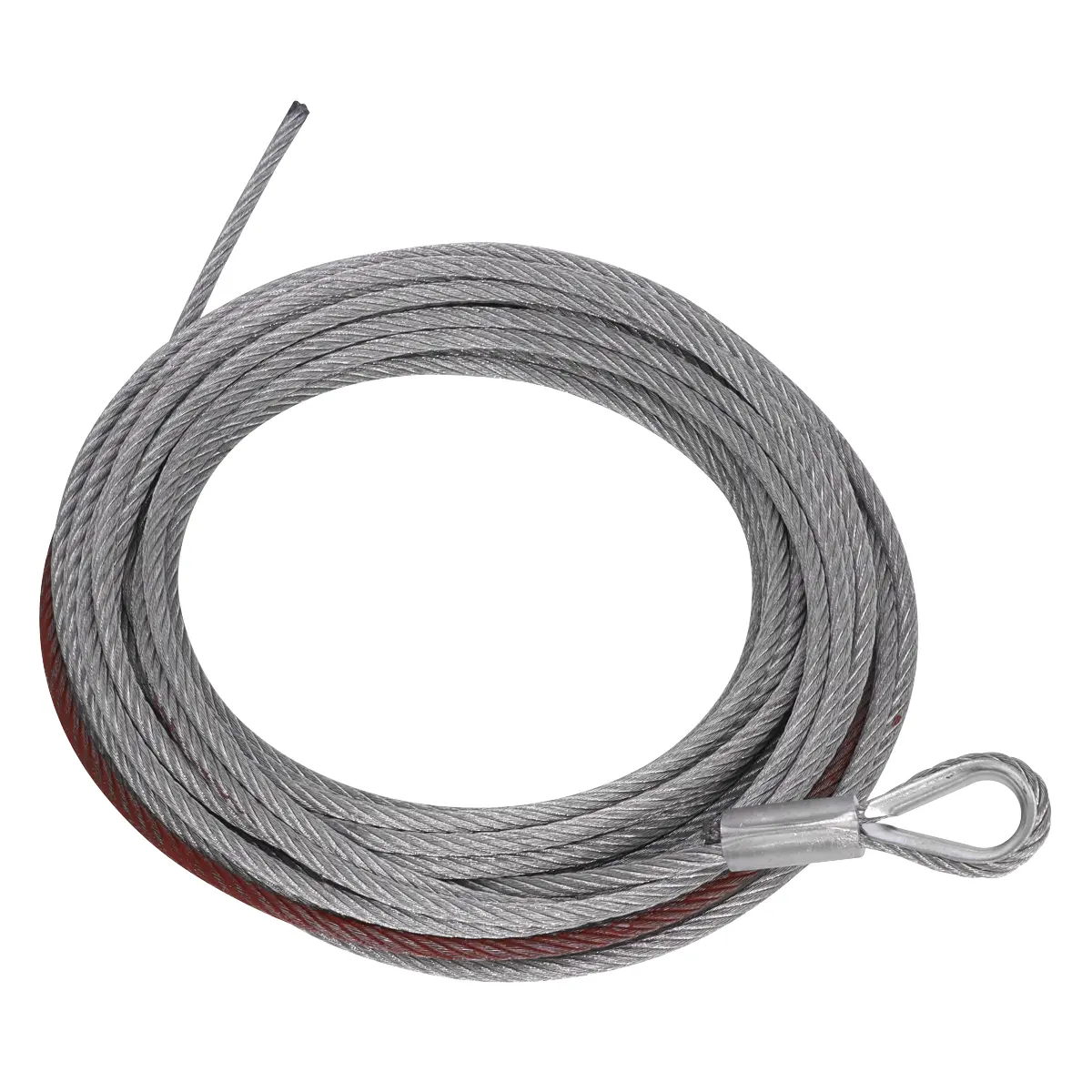

| Consumable Parts: | ATV2040.WR – Wire Rope (Ø5.4mm x 17m) for ATV2040, ATV2040.DR – Dyneema Rope (Ø5.5mm x 17m) for ATV2040 |
| Current Draw: | No-Load – 30A, Maximum Load – 185A |
| Gear Ratio: | 180:1 |
| Line Pull*: | 2040kg(4500lb) |
| Line Speed*: | No Load – 4.5m/min, Maximum Load – 1.3m/min |
| Motor Power: | 2.5kW(3.25hp) |
| Nett Weight: | 13.9kg |
| Note: | *Performance quoted at first layer of cable on drum |
| Rated Capacity: | Layer 1: 2043kg, Layer 4: 1234kg |
| Supply: | 12V |
| Wire Rope Diameter: | 5.4mm |
| Wire Rope Length: | 17m |
Documents
| Instructions | View/Download |
| Parts Diagrams | View/Download |
