Description

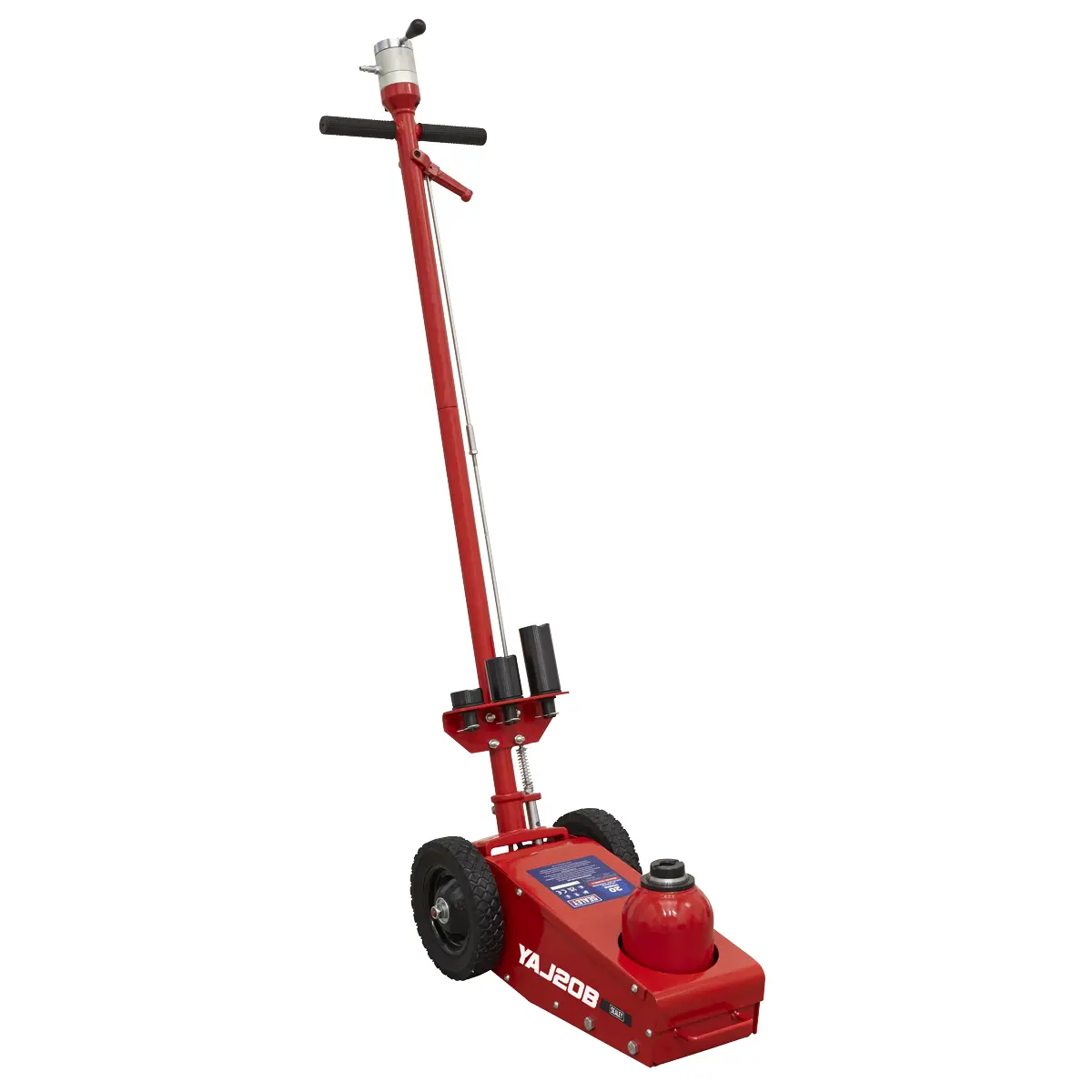

Ideal for workshop or roadside use, this jack takes the effort out of lifting heavy plant, tractors and commercial vehicles. For extra safety, features dead man’s handle and multi-position locking handle. Supplied with 20/60/100mm extensions to close the gap between the saddle of the jack and the jacking point. See table for detailed specification.
• Powerful and reliable, ideal for workshop or roadside use.
• At modest cost, it takes the effort out of lifting heavy plant, tractors and commercial vehicles.
• Features dead man’s controls and multi-position locking handle.
• Supplied with 20/60/100mm extensions to close the gap between the saddle of the jack and the jacking point.
Specifications
| Model No | YAJ20B |
| Air Consumption: | 9.5cfm |
| Brand: | Sealey |
| Capacity: | 20 Tonne |
| Chassis Length: | 610mm |
| Extensions: | 20/60/100mm |
| Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): | 530/20 |
| Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): | n/a |
| Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): | n/a |
| Maximum Length: | 1270mm (including handle) |
| Minimum Saddle Height: | 223mm |
| Nett Weight: | 32.5kg |
| Overall Width: | 320mm |
| Piston Stroke: | 119mm |
| Screw Extension: | 88mm |
| Width without Wheels: | 187mm |
| Working Pressure: | 100-120psi |
Documents
| Instructions | View/Download |
| Parts Diagrams | View/Download |
