Description
CLEARANCE SALE!

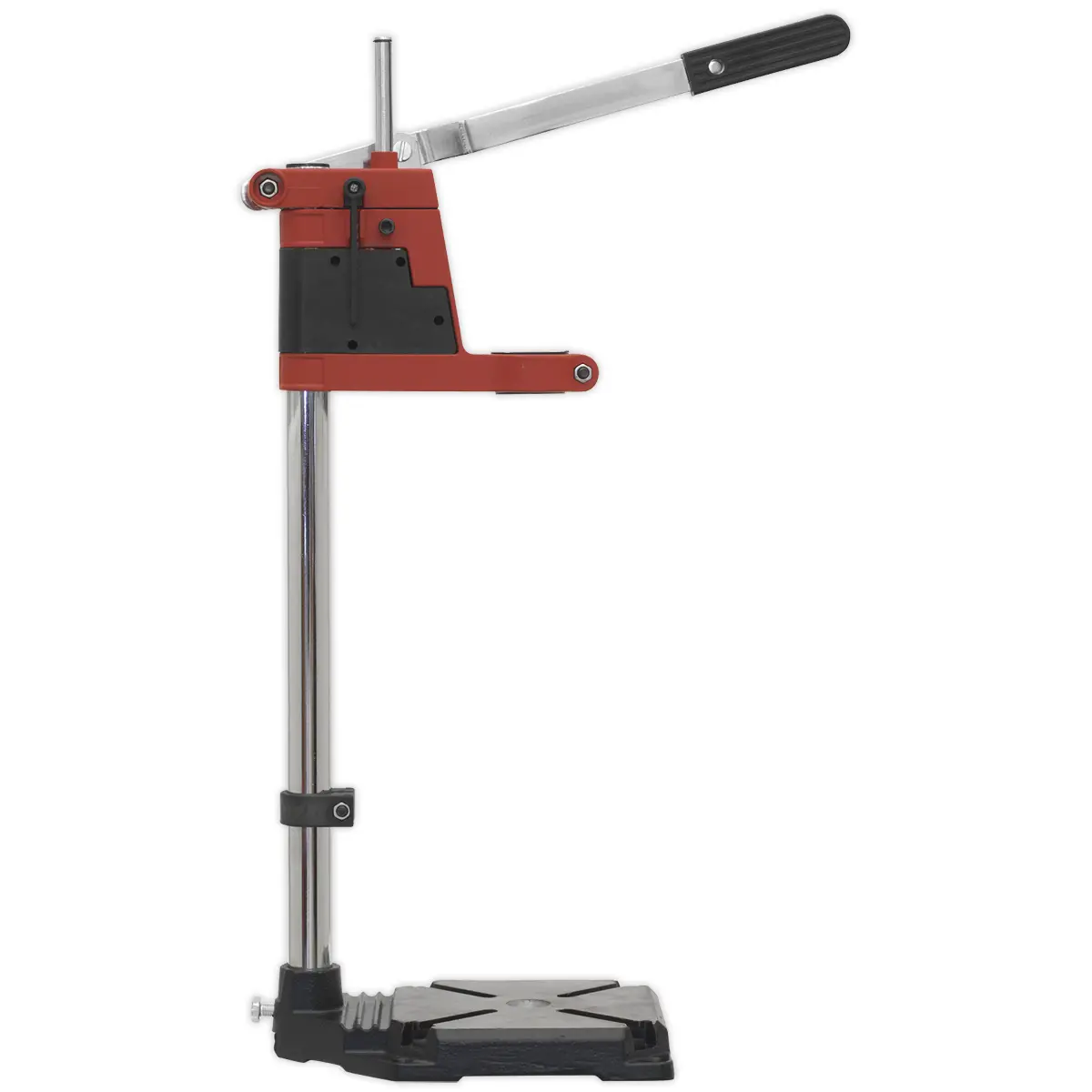

Drill stand with cast iron base for vertical drilling using a hand drill. Supplied with drill vice which mounts onto the base to secure the workpiece. Features a preset depth control and stop for drilling depths of up to 60mm. For use with hand drills with a collar diameter of Ø38mm if used with the adaptor bush or Ø43mm if used without. Drill vice features a quick jaw release feature to allow fast and easy adjustment to suit the workpiece.
• Drill stand with cast iron base for vertical drilling using a hand drill.
• Supplied with 65mm drill vice which mounts onto the base to secure the workpiece.
• Features a preset depth control and stop for drilling depths of up to 60mm.
• For use with hand drills with a collar diameter of Ø38mm if used with the adaptor bush or Ø43mm if used without.
• Drill vice features a quick jaw release feature to allow fast and easy adjustment to suit the workpiece.
Specifications
| Model No | DS01 |
| Brand: | Sealey |
| Nett Weight: | 0.00kg |
| Collar Centre to Column: | 120mm |
| Maximum Distance Collar to Base: | 345mm |
| Column Diameter: | Ø25mm |
| Base Size: | 155 x 220mm |
| Collar Diameter: | Ø43mm (Ø38mm with adaptor bush) |
| Overall Height: | 500mm |
| Vice Specification: | |
| Jaw Width: | 65mm |
| Jaw Depth: | 25mm |
| Jaw Opening: | 70mm |
