Description

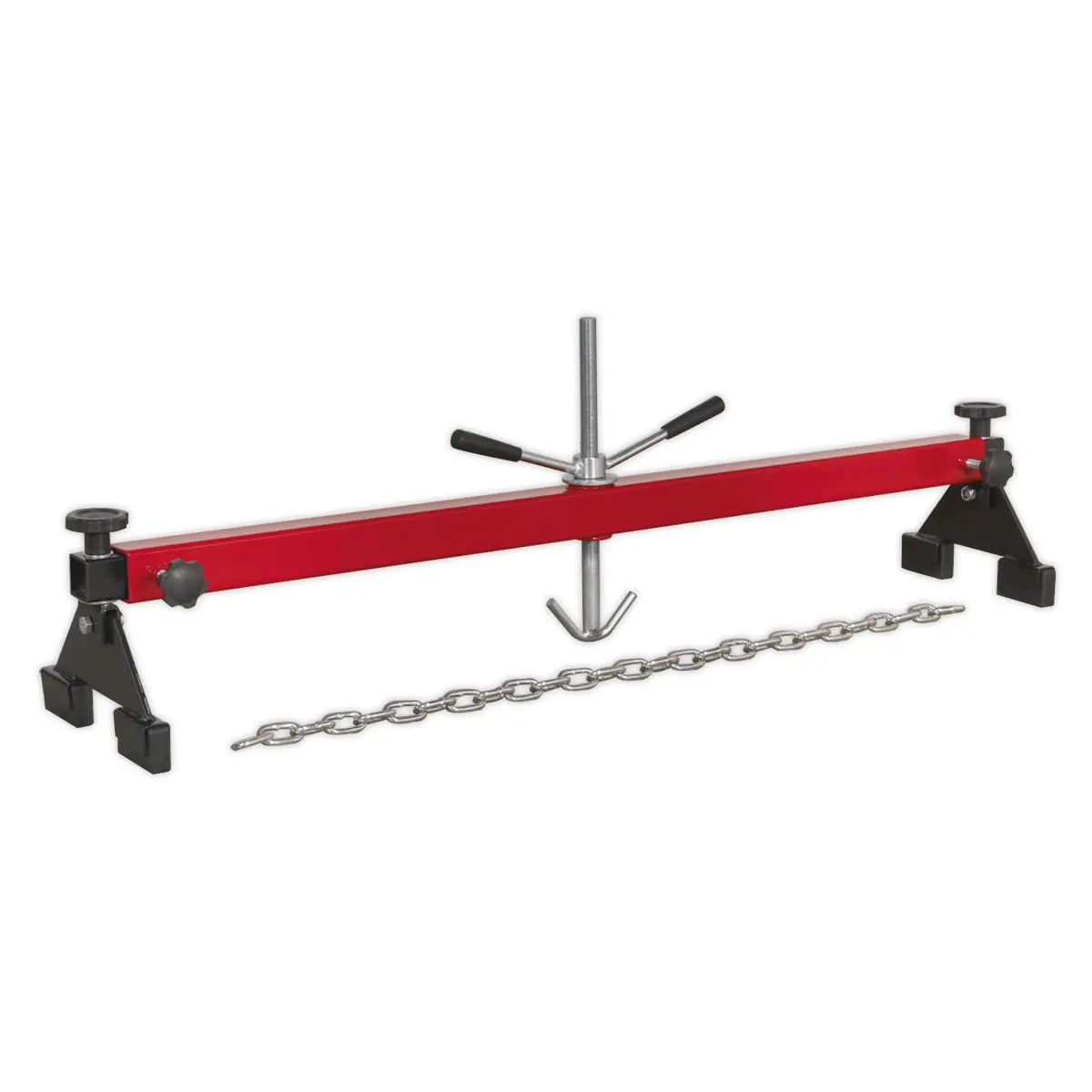

Supports and accurately positions engine during maintenance operations such as replacing anti-vibration mountings and certain body panels. Also used as an aid for the removal of gearboxes and transmissions. Beam supported on rubber feet and fine adjustment control is obtained by using a screw/hook mechanism. Supplied with a length of chain.
• Designed to support and accurately position engines during maintenance operations such as replacing anti-vibration mountings and certain body panels.
• Also used as an aid for the removal of gearboxes and transmissions.
• Beams supported on rubber feet and fine adjustment control is obtained by using a screw/hook mechanism.
• Supplied with a length of chain.
Specifications
| Model No | ES500 |
| Brand: | Sealey |
| Capacity: | 500kg |
| Maximum Width: | 1910mm |
| Minimum Width: | 1120mm |
| Nett Weight: | 12.9kg |
| Screw Travel: | 230mm |
Documents
| Instructions | View/Download |
| Parts Diagrams | View/Download |
