Description

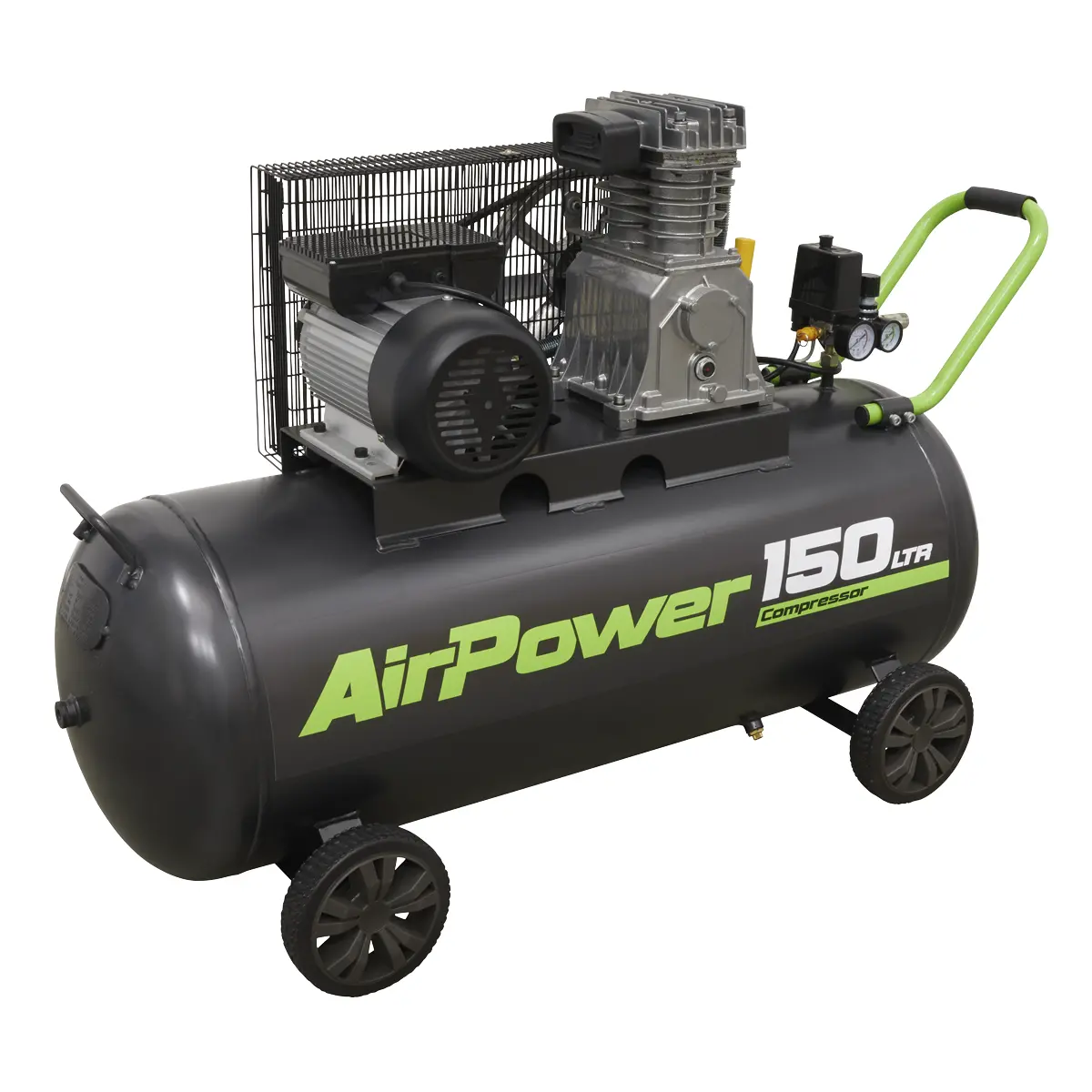

Belt driven pump with aluminium cylinders and cast iron liners for reduced weight and improved resistance to wear. Fitted with a 3hp motor. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Suitable for general-purpose workshop applications.
• Air Displacement: 10.8cfm(305L/min).
• Maximum Free Air Delivery: 5.3cfm(150L/min).
• Maximum Pressure: 116psi(8bar).
• Belt driven pump with aluminium cylinders and cast iron liners for reduced weight and improved resistance to wear.
• Fitted with a 3hp motor.
• Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
• Suitable for general-purpose workshop applications.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specifications
| Model No | SAC15030B |
| Air Displacement cfm(L/min): | 10.8(305) |
| Brand: | Sealey |
| Maximum Free Air Delivery cfm(L/min): | 5.3(150) |
| Maximum Pressure: | 116psi(8bar) |
| Minimum Rated Supply: | 13A |
| Motor Output: | 3hp |
| Nett Weight: | 88kg |
| Noise Level: | 97dB(A) |
| Oil Capacity: | 3 x 0.3L |
| Outlet: | Quick release coupling |
| Phase: | 1ph |
| Receiver Capacity: | 150L |
| Size (W x D x H): | 1300 x 510 x 815mm |
| Speed: | 1000rpm |
| Supply: | 230V/13A |
Documents
| Parts Diagrams | View/Download |
| Instructions | View/Download |
| Material Safety Data Sheet | View/Download |
