Description

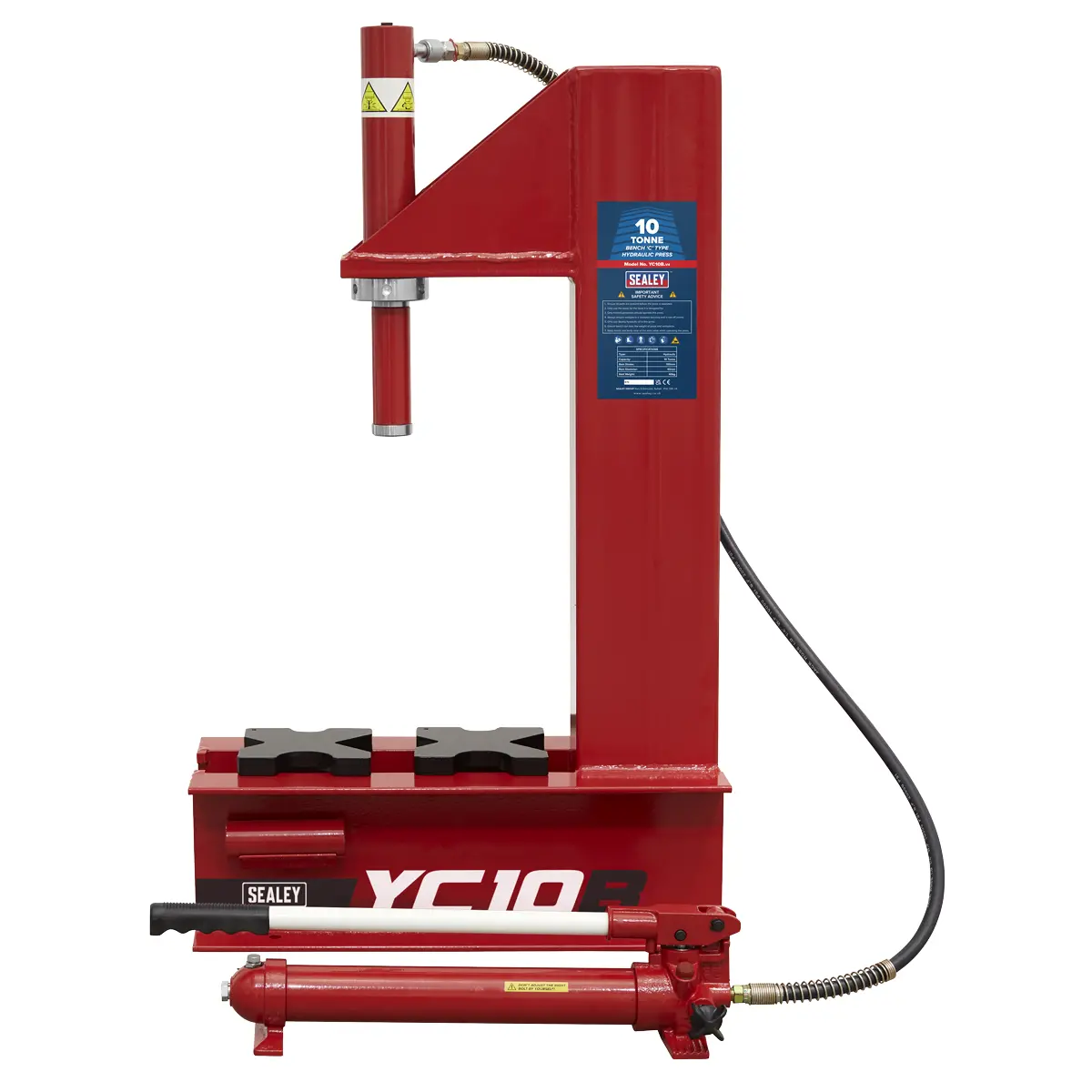

High quality industrial press ideal for pressing, bending and extruding. Detachable pump and ram allow hydraulics to be used for other purposes when press is not in use. The C-frame design provides easy-access to die from three sides, as well as permitting loading and unloading of wide and irregular workpieces. Supplied with flat pressing plates and extension tubes.
• HEAVY-DUTY FRAME – Made from high quality steel with a powder coated paint finish to help corrosion resistance.
• EASY-ACCESS – The C-frame design provides easy-access to die from three sides, as well as permitting loading and unloading of wide and irregular workpieces.
• MULTIPURPOSE HYDRAULIC SYSTEM – Detachable pump and ram allowing hydraulics to be used for other purposes when press is not in use.
• TABLE ACCESSORIES – Includes flat pressing plates and extension tubes.
• Supplied without gauge.
Specifications
| Model No | YC10B |
| Bench or Floor Mounting: | Bench |
| Brand: | Sealey |
| Capacity: | 10 Tonne |
| Gauge Included: | No |
| Lateral Ram Travel: | 0 |
| Maximum Height – Ram to Table: | 450mm |
| Minimum Height – Ram to Table: | 150mm |
| Nett Weight: | 60kg |
| Optional Accessories: | n/a |
| Overall Height: | 960mm |
| Ram Diameter: | Ø40mm |
| Ram Stroke: | 130mm |
| Table Aperture: | 100mm |
| Type: | Hydraulic |
| Working Table Depth: | 240mm |
Documents
| Material Safety Data Sheet | View/Download |
| Parts Diagrams | View/Download |
| Instructions | View/Download |
