Description

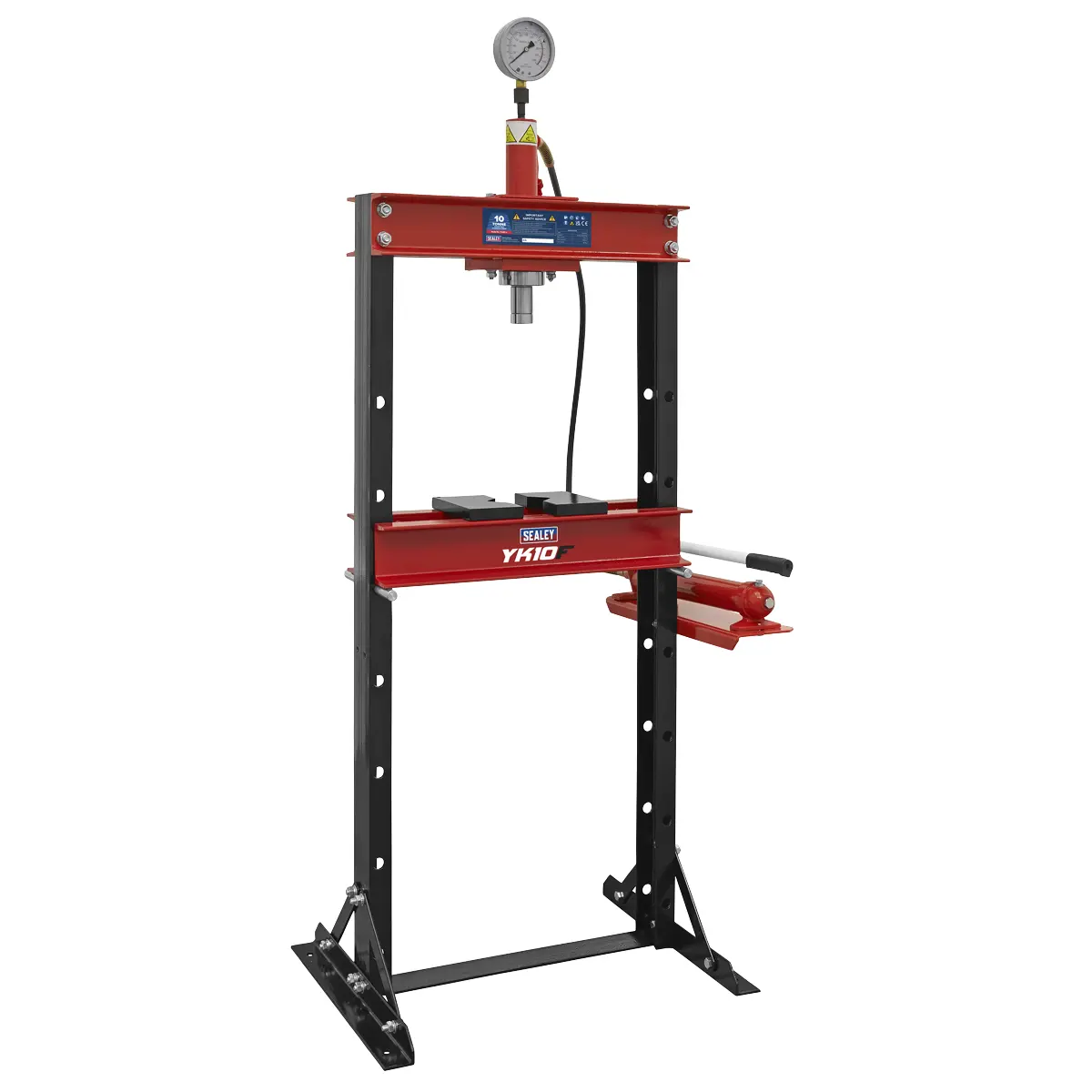

Made from high quality steel with a powder coated paint finish, preventing corrosion for years to come. Adjustable table height relocation of two pins allows the table to be set at your optimum working height. Designed to remove and install bushings, bearings, ball joints, universal joints, pulleys and gears. Includes two arbor plates, assisting alignment and strengthening the press point position.
• SOLID STEEL CONSTRUCTION – Made from high quality steel, with a powder coated paint finish, preventing corrosion for years to come.
• ADJUSTABLE TABLE – Simple relocation of two pins allows the table to be set at your optimum working height.
• MULTI FUNCTIONAL – Designed to remove and install bushings, bearings, ball joints, universal joints, pulleys and gears.

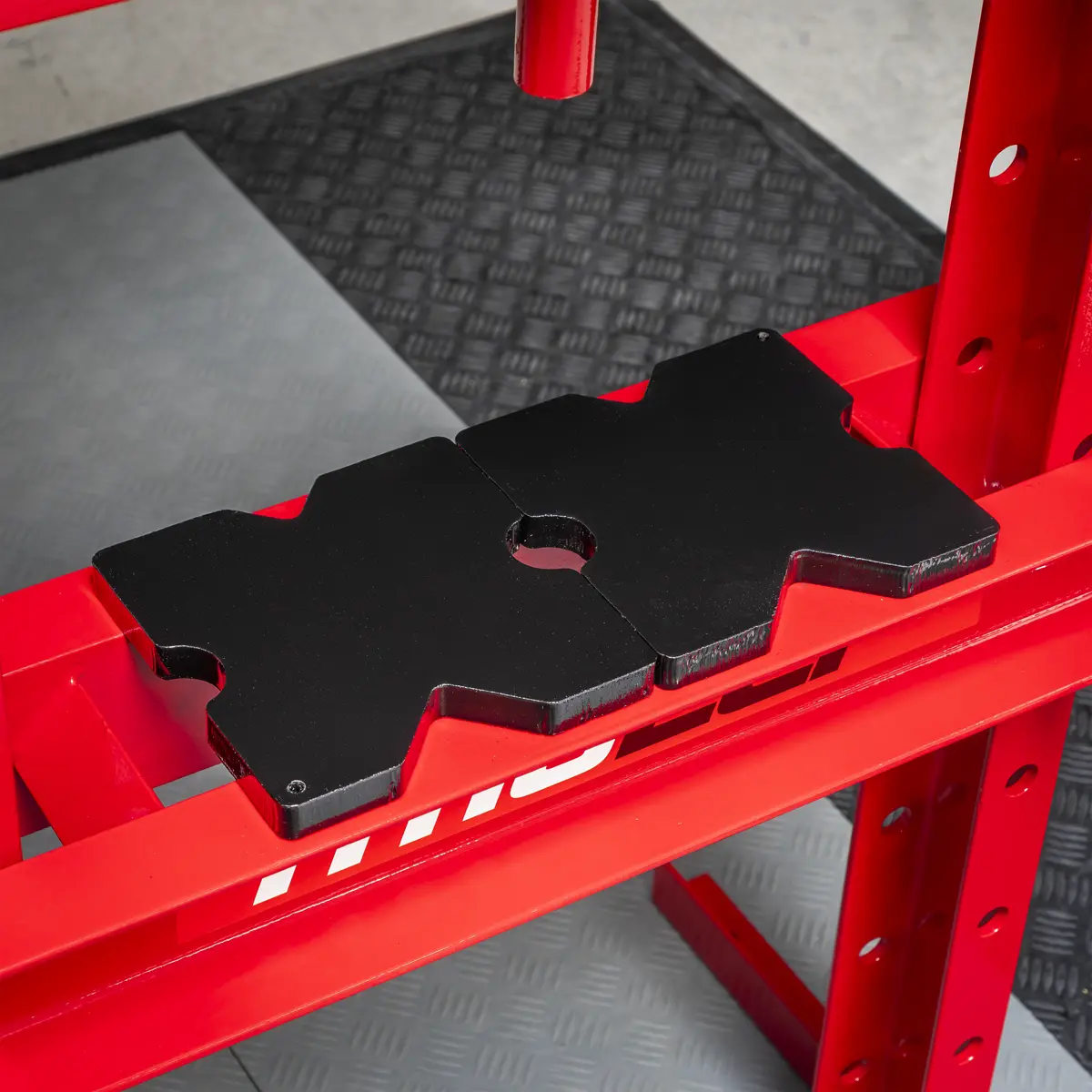

• TWO ARBOR PLATES INCLUDED – Assisting alignment, and strengthening the press point position.
Specifications
| Model No | YK10ECF |
| Bench or Floor Mounting: | Floor |
| Brand: | Sealey |
| Capacity: | 10 Tonne |
| Gauge Included: | No |
| Lateral Ram Travel: | N/A |
| Maximum Height – Ram to Table: | 603mm |
| Minimum Height – Ram to Table: | -150mm |
| Nett Weight: | 48kg |
| Operating Table Width: | 420mm |
| Optional Accessories: | N/A |
| Overall Height: | 1230mm |
| Ram Diameter: | Ø43mm |
| Ram Stroke: | 125mm |
| Screw Extension: | N/A |
| Table Aperture: | 80mm |
| Type: | Hydraulic |
| Working Table Depth: | 165mm |
| Working Table Width: | 530mm |
Documents
| Instructions | View/Download |
| Material Safety Data Sheet | View/Download |
| Parts Diagrams | View/Download |
