Description

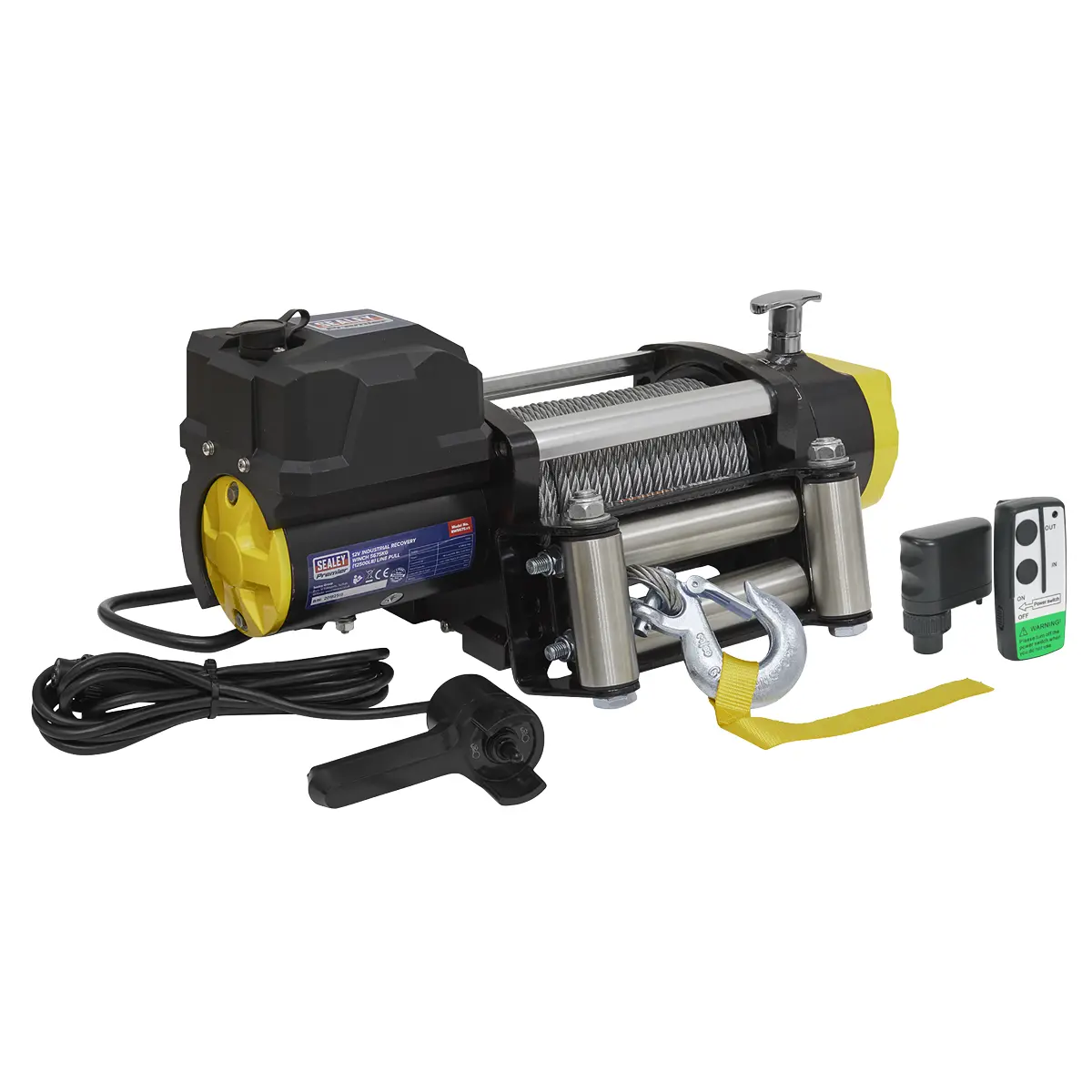

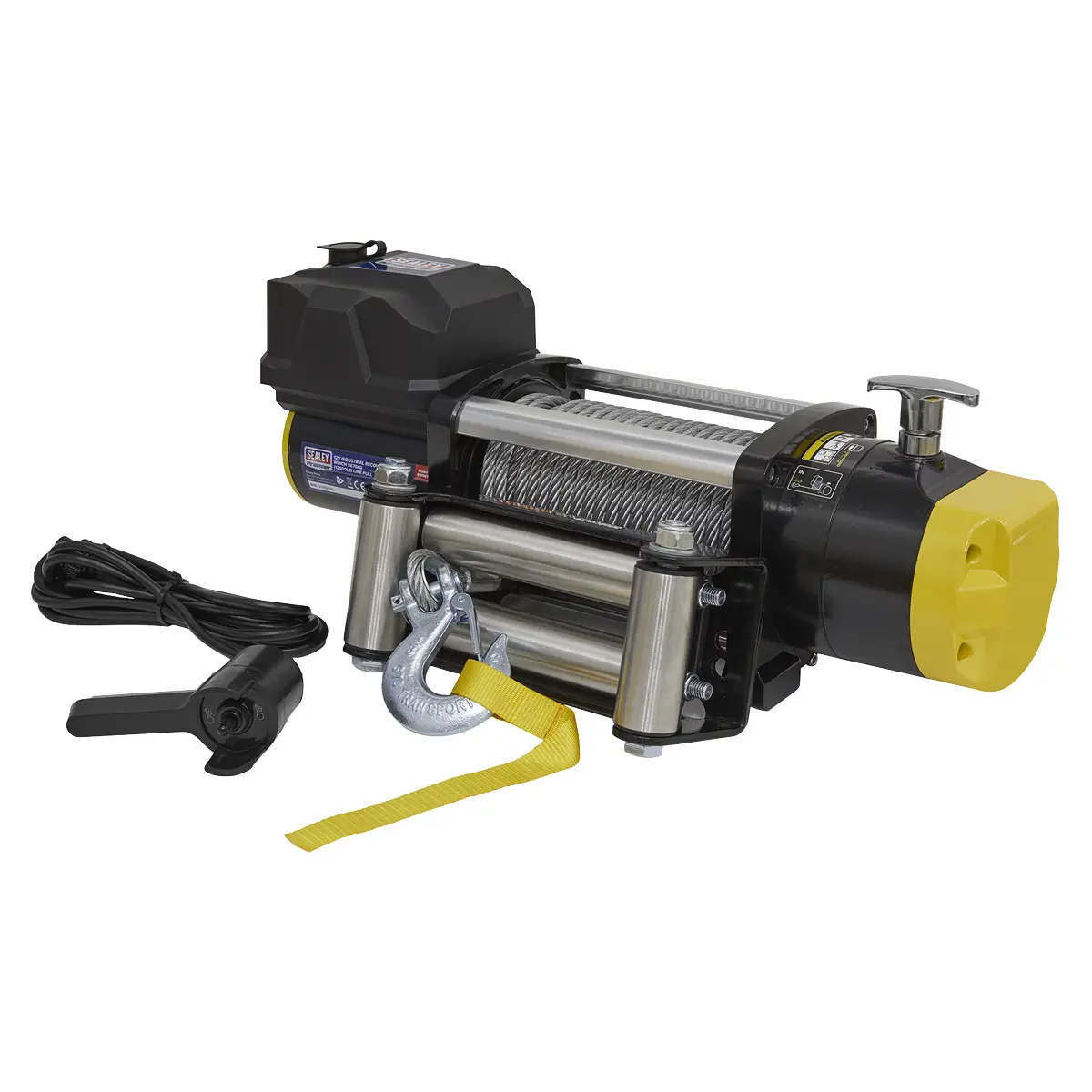

An all-metal chassis for long-life and low maintenance, suitable for industrial recovery and off-road use. Motor can easily be rotated 90° to meet various wiring and mounting requirements. A 6.4hp high power 4.7kW 12V DC motor with a permanent magnet gives first class pulling power. Innovative ‘Double Lock’ load-holding brake design provides zero drag when pulling in. Ergonomic ‘lift & turn’ free spool clutch. 4-Stage planetary gears. High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum. Heavy-duty all-weather housing and IP67 rated motor and gearbox.
• Suitable for industrial recovery and off-road use.
• Designed and built with the toughest jobs in mind.
• All-metal chassis for long-life and low maintenance.
• Motor can easily be rotated 90° to meet various wiring and mounting requirements.
• A 6.4hp high power 4.7kW 12V DC motor with a permanent magnet gives first class pulling power.
• Innovative ‘Double Lock’ load-holding brake design provides zero drag when pulling in.
• Ergonomic ‘lift & turn’ free spool clutch.
• 4-Stage planetary gears.
• High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum.
• Heavy-duty all-weather housing and IP67 rated motor and gearbox.
• 3 Year Guarantee*.
Specifications
| Model No | RW5675 |
| Brand: | Premier |
| Current Draw: | No-Load – 50A, Maximum Load – 390A |
| Gear Ratio: | 171:1 |
| Line Pull*: | 5675kg(12500lb) |
| Line Speed*: | No Load – 15m/min, Maximum Load – 1m/min |
| Motor Power: | 4.7kW(6.4hp) |
| Nett Weight: | 41kg |
| Note: | *Performance quoted at first layer of cable onto drum |
| Supply: | 12V |
| Wire Rope Diameter: | 9.2mm |
| Wire Rope Length: | 26m |
Documents
| Parts Diagrams | View/Download |
| Instructions | View/Download |
