Description

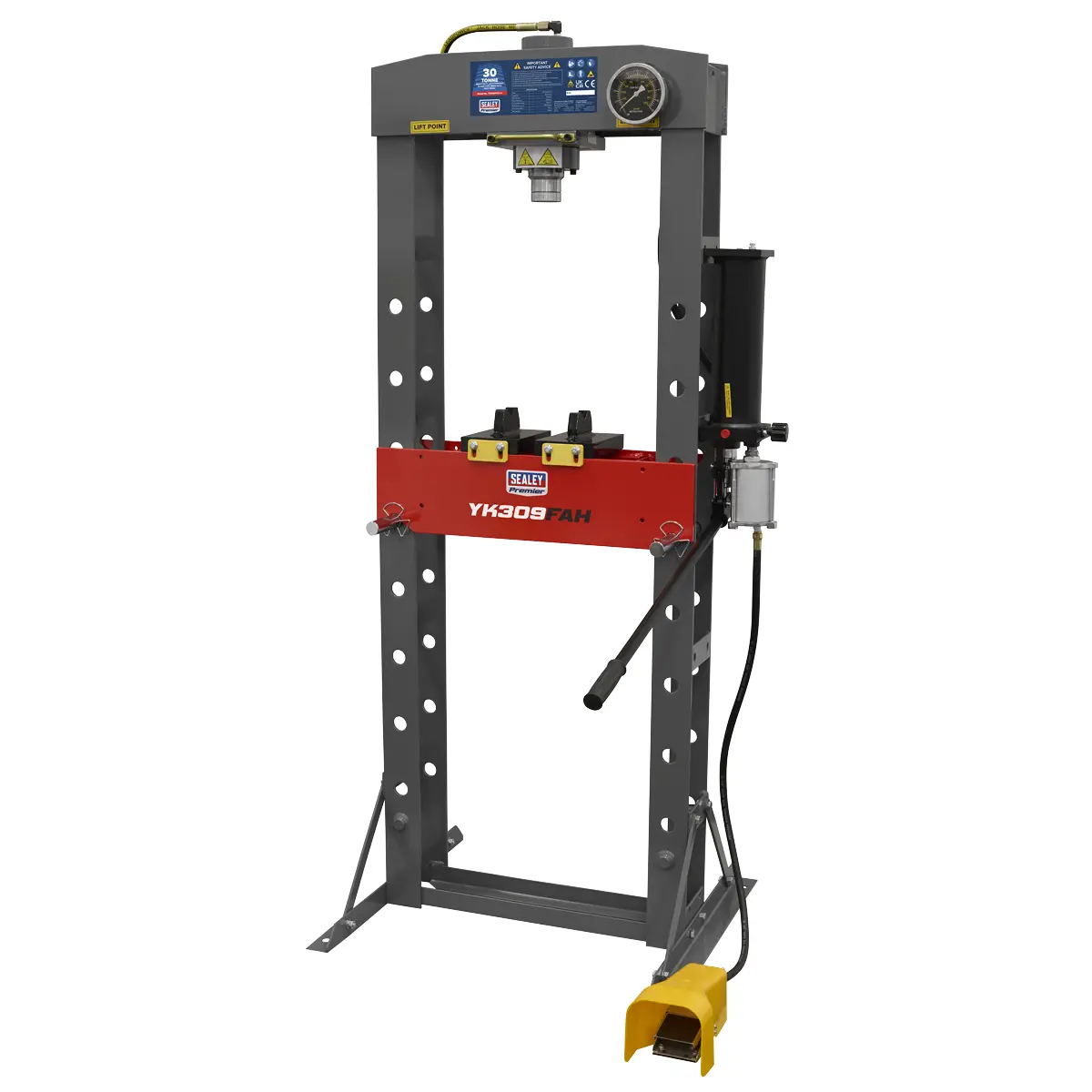

Steel frame construction. Side mounted, air motor powering hydraulic pump unit with 2-speed manual operation. Sliding hydraulic ram assembly giving 190mm of lateral travel for off-centre pressing applications. Fitted with ram pressure gauge and supplied with flat pressing plate/V-blocks.
• STRENGTH AND CONTROL – Heavy-duty steel frame construction with side mounted air motor powering hydraulic pump unit.
• 2-SPEED MANUAL OPERATION – Rapid decent and then slow and controlled when the work piece is met.
• LATERAL TRAVEL – Sliding hydraulic ram assembly giving 190mm of lateral travel for off-centre pressing applications.
• ACCURATE PRESSING – Fitted with ram pressure gauge.
• TABLE ACCESSORIES – Supplied with flat pressing plate/V-blocks.
• 5 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specifications
| Model No | YK309FAH |
| Air Consumption: | 9cfm |
| Bench or Floor Mounting: | Floor |
| Brand: | Premier |
| Capacity: | 30 Tonne |
| Gauge Included: | Yes |
| Lateral Ram Travel: | 190mm |
| Maximum Height – Ram to Table: | 1035mm |
| Minimum Height – Ram to Table: | 55mm |
| Nett Weight: | 132kg |
| Operating Table Width: | 490mm |
| Optional Accessories: | YKSG20 – Safety Guard, YKPP8 – Press Pin Set |
| Overall Height: | 1775mm |
| Ram Diameter: | Ø70mm |
| Ram Stroke: | 150mm |
| Table Aperture: | 152mm |
| Type: | Air/Hydraulic |
| Working Table Depth: | 172mm |
| Working Table Width: | 650mm |
Documents
| Instructions | View/Download |
| Material Safety Data Sheet | View/Download |
| Parts Diagrams | View/Download |
