Description

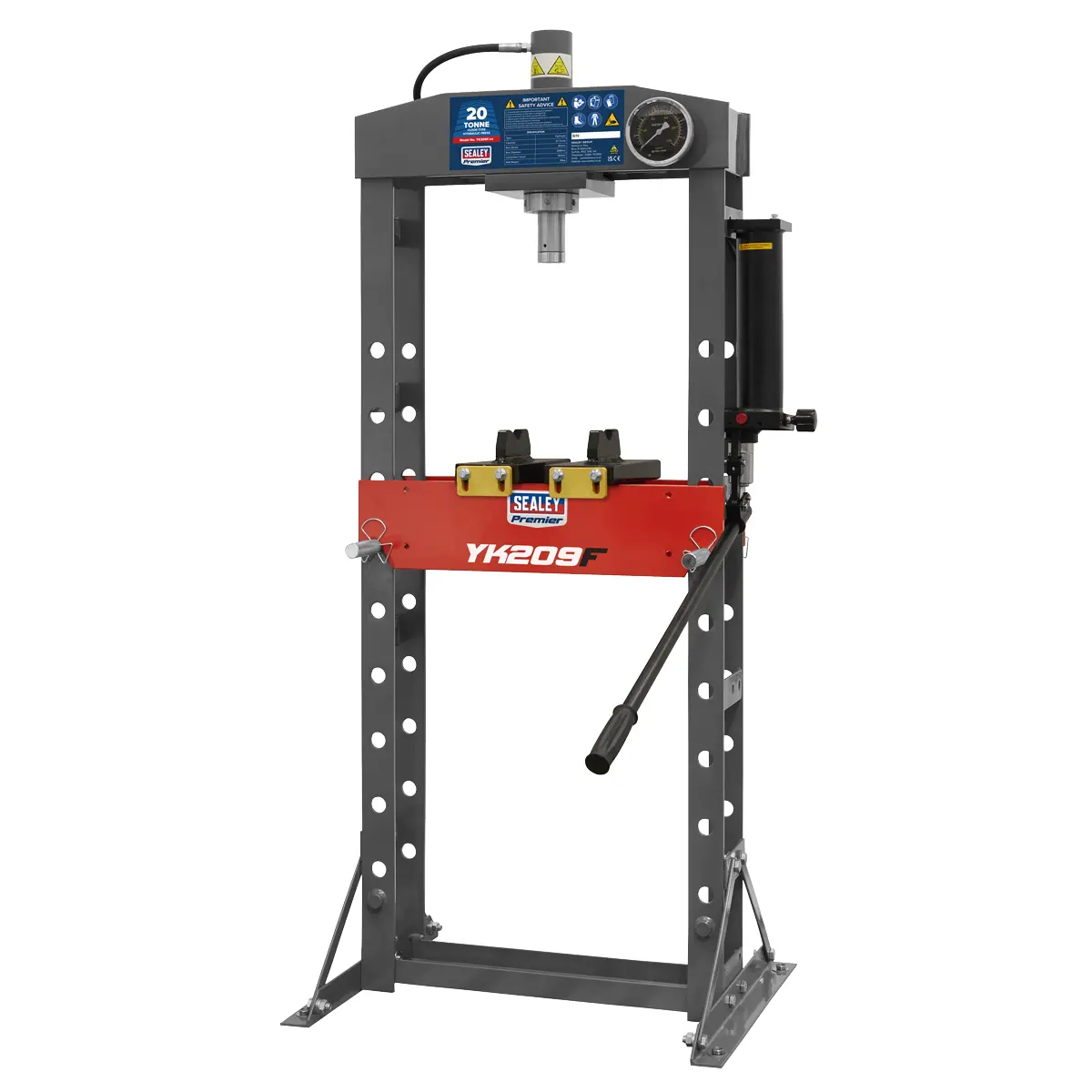

Made from a high quality steel with a powder coated paint finish to help corrosion resistance. Fully Welded frame. Sliding hydraulic ram assembly giving 190mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Supplied with flat pressing plate/V-blocks.
• PREMIER – Heavy-duty steel frame construction with hydraulic pump unit.
• VERSATILE – Sliding hydraulic ram assembly gives 190mm of lateral travel for off-centre pressing applications.
• ACCURATE – Frame head fitted with ram pressure gauge.
• ACCESSORIES – Supplied with flat pressing plate/V-blocks.
• WARRANTY – 5 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specifications
| Model No | YK209F |
| Bench or Floor Mounting: | Floor |
| Brand: | Premier |
| Capacity: | 20 Tonne |
| Gauge Included: | Yes |
| Lateral Ram Travel: | 190mm |
| Maximum Height – Ram to Table: | 890mm |
| Minimum Height – Ram to Table: | 78mm |
| Nett Weight: | 96kg |
| Operating Table Width: | 480mm |
| Optional Accessories: | YKSG20 – Safety Guard, YKPP8 – Press Pin Set |
| Overall Height: | 1660mm |
| Ram Diameter: | Ø48mm |
| Ram Stroke: | 185mm |
| Table Aperture: | 138mm |
| Type: | Hydraulic |
| Working Table Depth: | 154mm |
| Working Table Width: | 600mm |
Documents
| Material Safety Data Sheet | View/Download |
| Instructions | View/Download |
| Parts Diagrams | View/Download |
