Description
PROMOTION SALE!
One of a comprehensive range of Premier floor standing pillar drills for the professional workshop. Features heavy-duty aluminium-bodied motor for long and reliable performance. No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open. Supplied with an electrically inter-locked chuck guard. Large sized square table fitted with precision rack and pinion height adjustment.
• One of a comprehensive range of Premier floor standing pillar drills for the professional workshop.
• Features heavy-duty aluminium-bodied motor for long and reliable performance.

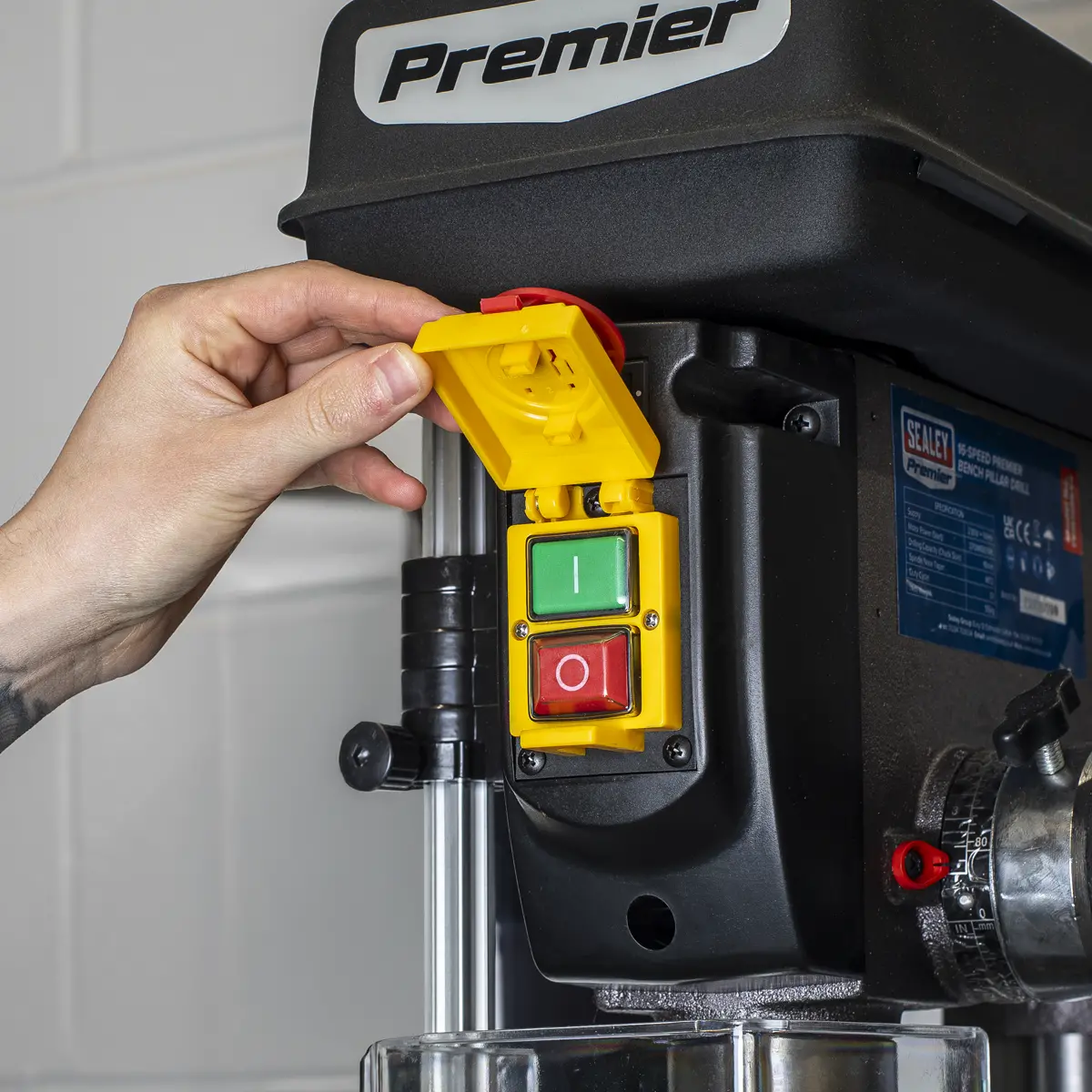

• No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
• Supplied with an electrically inter-locked chuck guard.
• Large sized square table fitted with precision rack and pinion height adjustment.
• 16mm(5/8″) Capacity chuck, MT2.
• Height: 1610mm.
• Spindle Centre to Column: 170mm.
• Motor Power: 370W.
• Column Diameter: Ø73mm.
• Spindle Travel: 80mm.
• Weight: 52kg.
• 3 Year guarantee*.
Specifications
| Model No | PDM170F |
| Base Size: | 450 x 270mm |
| Brand: | Premier |
| Collar Diameter: | Ø55mm |
| Column Diameter: | Ø73mm |
| Drilling Capacity (Chuck Size): | 16mm |
| Integral Work Light: | No |
| Maximum Distance Spindle to Base: | 1255mm |
| Maximum Distance Spindle to Table: | 770mm |
| Motor Power (Start): | 370W(600W) |
| Nett Weight: | 47kg |
| Number of Speeds: | 16 |
| Optional Accessories: | PDM/KC – Keyless Pillar Drill Chuck 16mm |
| Overall Height: | 1610mm |
| Speed Range: | 190-3000rpm |
| Spindle Centre to Column: | 170mm |
| Spindle Nose Taper: | MT2 |
| Spindle Travel: | 80mm |
| Supply: | 230V |
| Swing: | 340mm |
| Working Base Surface Size: | 205 x 200mm |
| Working Table Surface Size: | 254 x 254mm |
Documents
| Parts Diagrams | View/Download |
| Instructions | View/Download |
